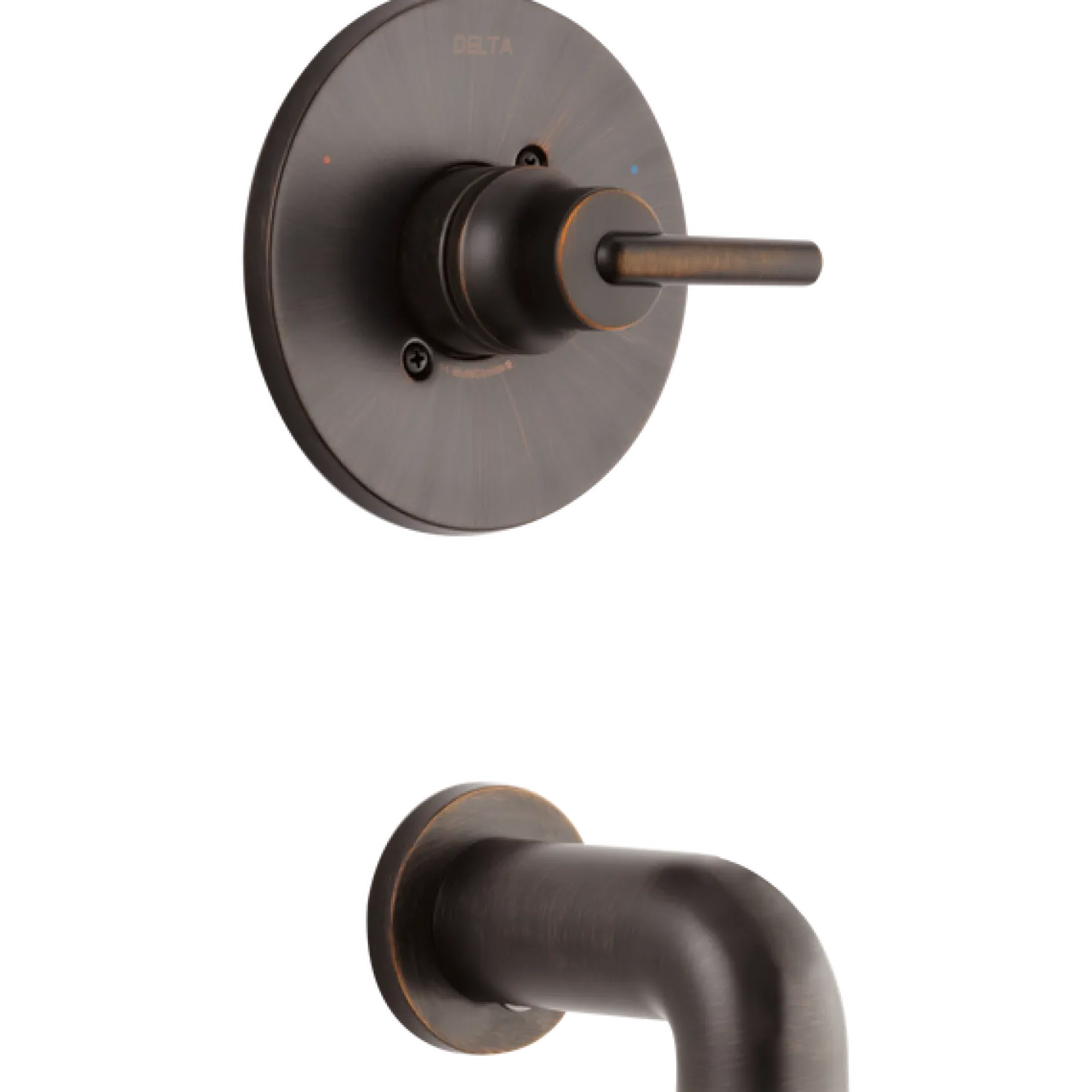

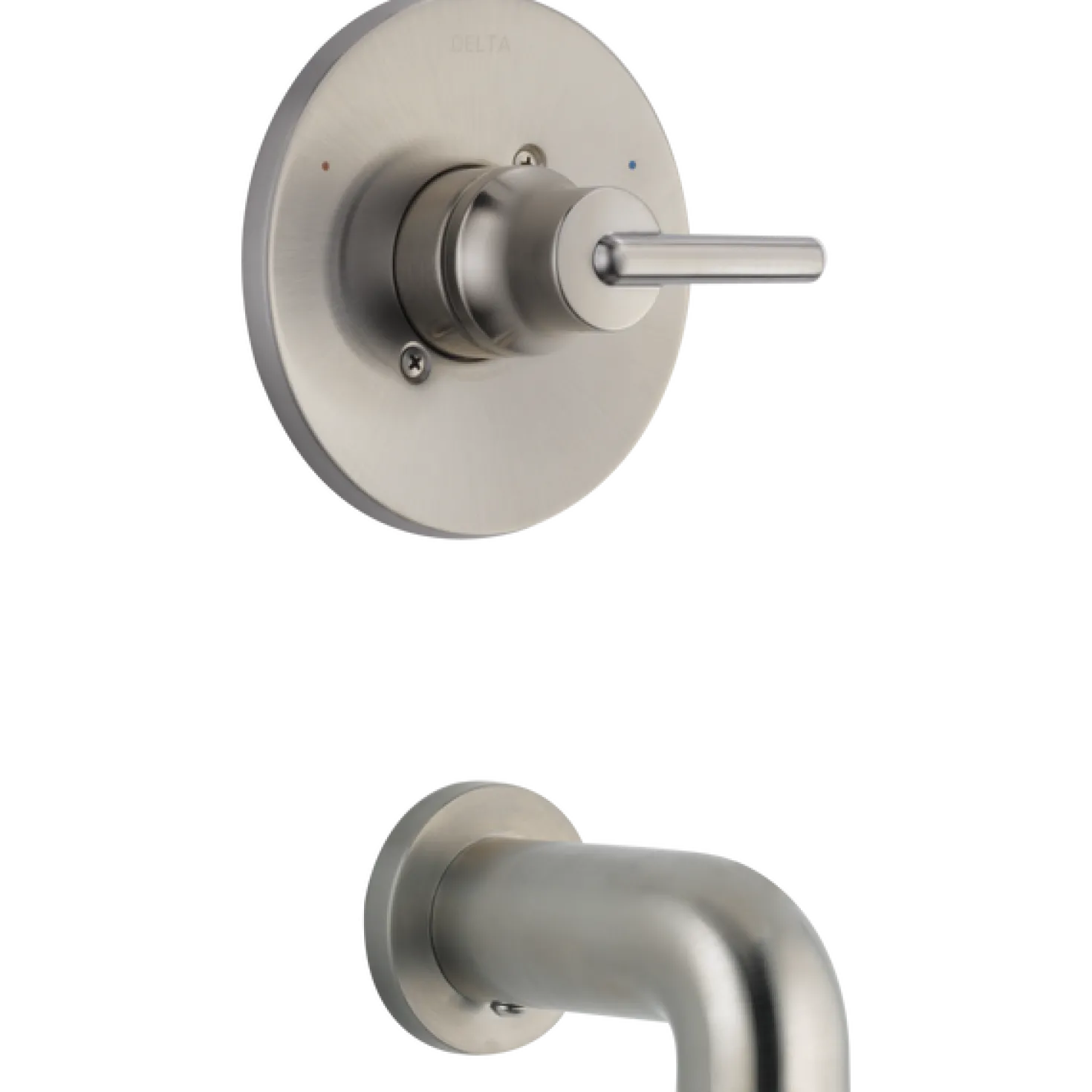

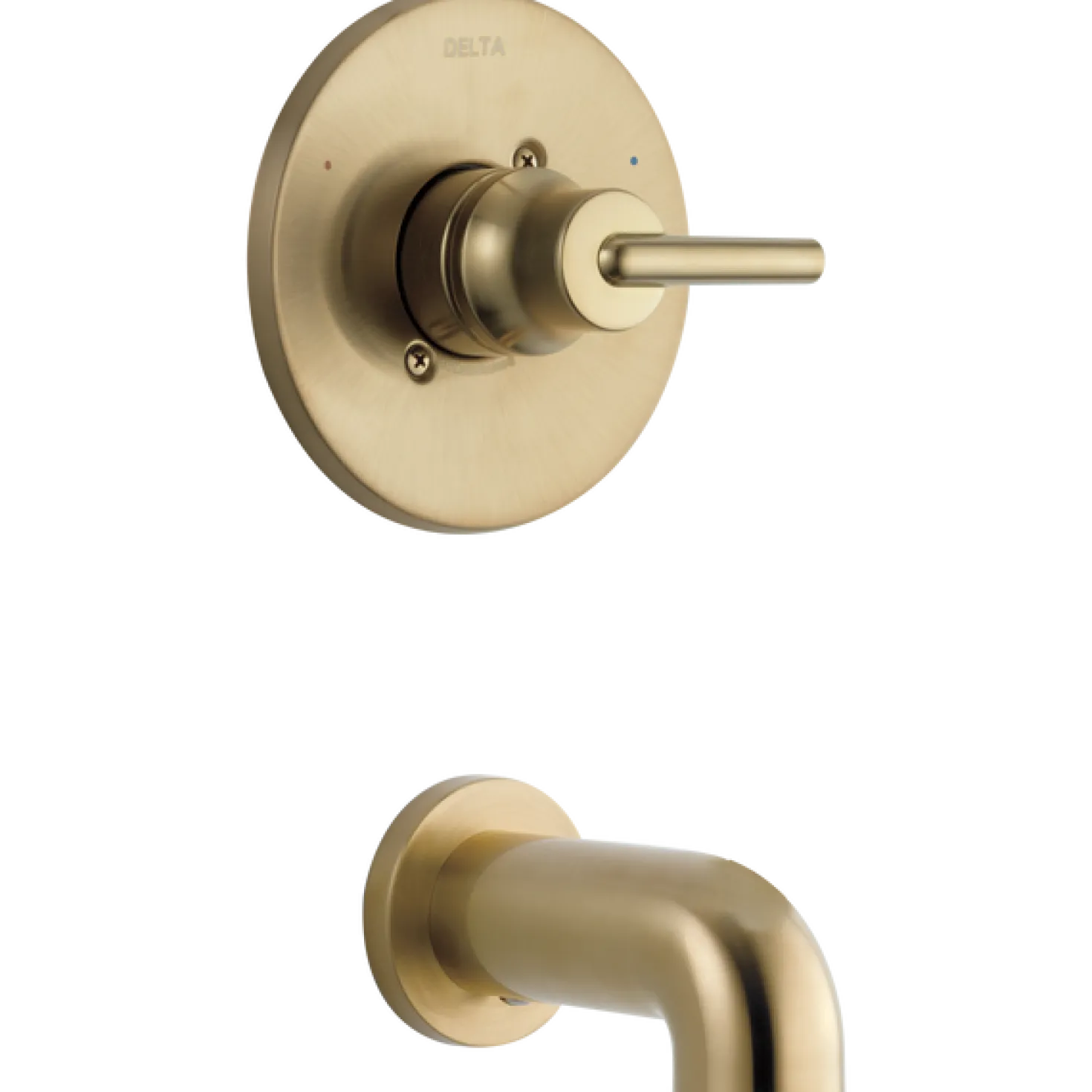

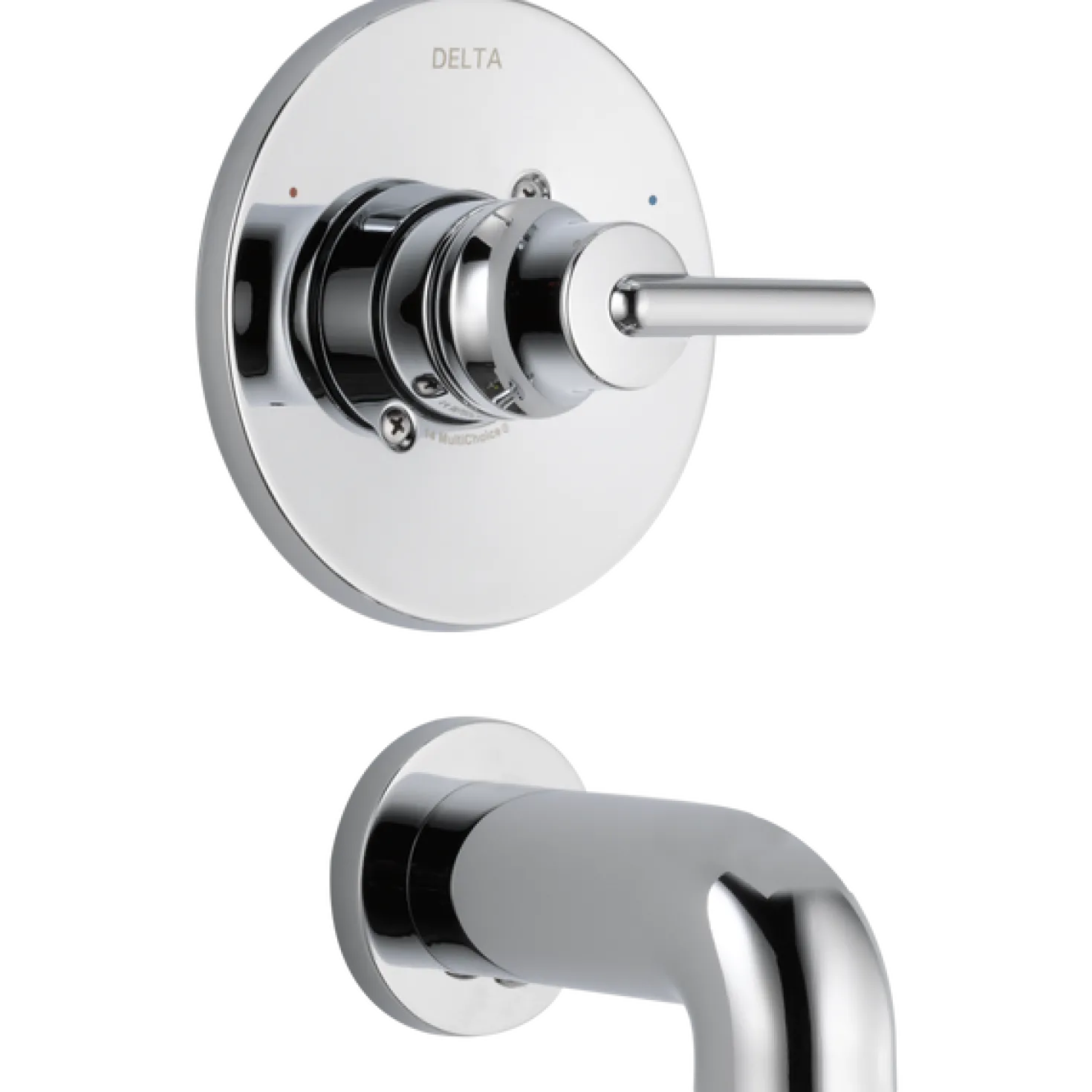

Delta Trinsic Monitor 14 Series Tub Trim

• Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
• For use with MultiChoice® Universal rough valve body (R10000 Series)
• Temperature only controlled with handle
• Field adjustable means to limit handle rotation into hot water zone
• 120° maximum handle rotation
• Maximum 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
• Tub port maximum flow rate 6.0 gpm @ 60 psi with R10000-UNBX
• Shower arm overall horizontal length = 5 1/2″ (138 mm), including threaded ends
• Red/blue pad print temperature indicators on escutcheon
• “LHD” models indicate less showerhead
• 1/2″ CWT slip-on spout adapter
• Stem extension kit RP77991 can be ordered to allow for an additional 1 3/4″ wall thickness.
• RP77991 ships with chrome escutcheon screws. For special finishes also order RP12630 escutcheon screws in desired finish.
