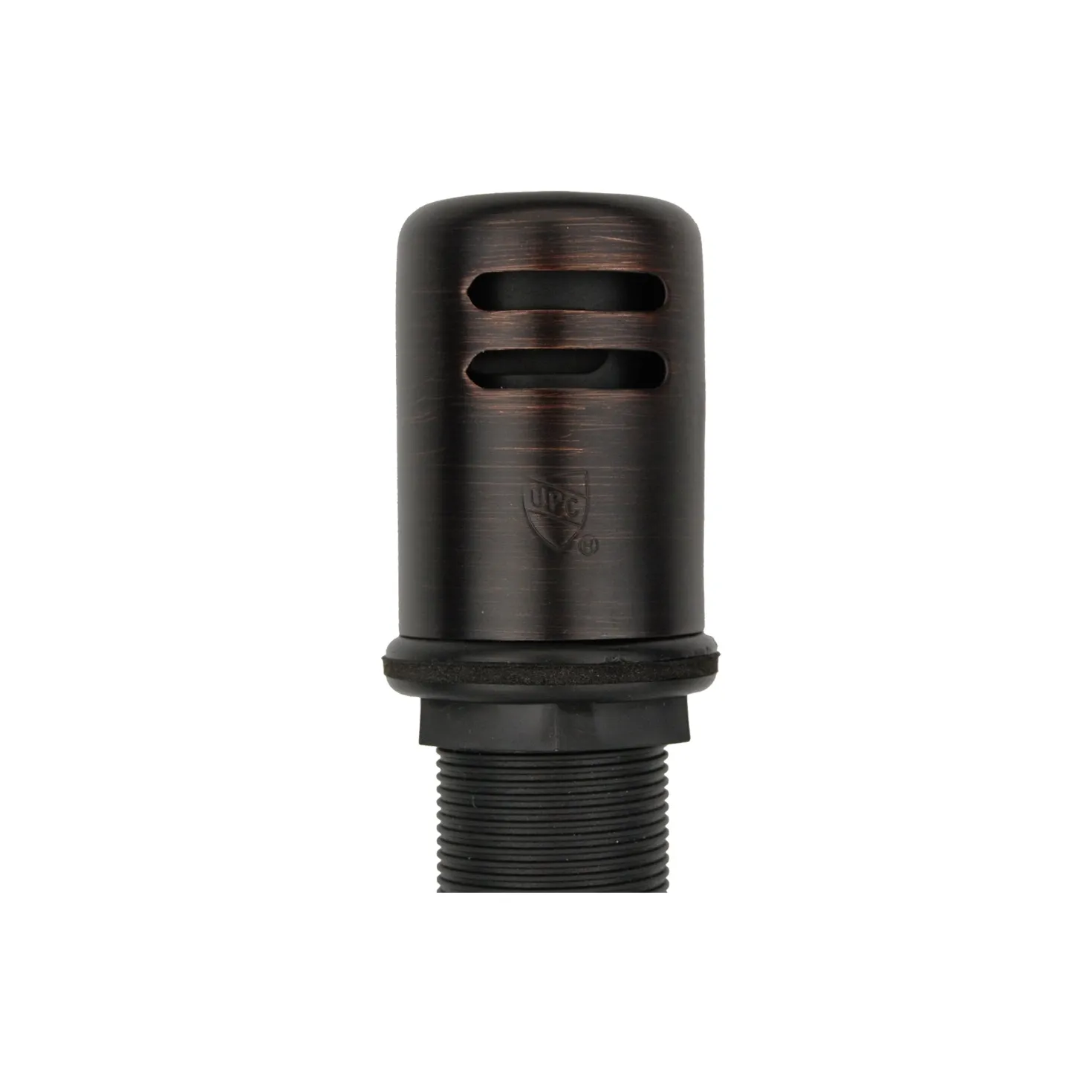

Premier Copper Products Air Gap in Oil Rubbed Bronze

Air Gap in Oil Rubbed Bronze.

• Details
• Specifications
  & Warranty
• Shipping
  & Returns
• Resources
• Shop Related

• • • Overall Height: 9″
    • Cap Height/Above Counter: 2 3/8″
    • Cap Overall Width: 1 3/4″
    • Thread Length: 2 7/8″
    • Thread Pitch (Threads Per Inch): 14.5
    • Thread Size: 1.75mm
    • Thread Type: Male
    • 5/8″ Dishwasher Inlet
    • 7/8″ Outlet
    • Mounts in a 1 1/4″ to 1 1/2″ Diameter Hole
    • Maximum Deck Thickness: 2 1/8″
    • Prevents Draw Back Into Dishwasher From Garbage Disposal or Sink
    • Material: Solid Brass Head with Polypropylene Body
• • Specification PDF
  • Warranty Information
